150W CV+CC

150W 5000mA 15-30VDC External Current Source weatherproof

Model Number: APVM-150C-5000
5000mA 150W Waterproof LED Driver
5000mA led Strip Current driver
150W 5000mA 15-30VDC
Product description: 150W 5000mA 15-30VDC IP67 Waterproof LED Current Driver for led strips, led panel lights, spotlights, sky panel lights, led modules, illuminated lightbox
INQUIRY

15-30V 150W 5000mA IP67 Water & Dust-Proof LED Power Supplies LED Driver

Constant current output ,Isolated NO Flicker design
Meet 4KV surge immunity level
Class Il Power unit, Double isolated, no FG

Product description
1. constant current output with high output voltage>60VDC
2. 180~264VAC/90-132VAC input only
3. Isolated Plastic housing
4. High efficiency up to 93%
5.Protections: Short circuit / Over voltage / Over temperature/Over Load
6.Cooling by free air convection
7. Fixed Output current
8.IP67 / IP65 design for indoor or outdoor installations
9.Suitable for dry / damp / wet locations
10. Suitable for LED lighting and advertising applications
11. 3years warranty

Model Number: APVM-150C-5000
Constant Current LED Driver, Isolated Flicker-free
Input voltage: 200-240VAC, 47-63HZ, 1.5A Max/ 90-132VAC, 3.0A Max
Output Current: 5000mA
Output voltage: 15-30VDC

Output Power:150W Max

Working efficiency>93%

IP Rating: Fully encapsulated with IP67 level
Inrush Current: 60A Max at 230VAC/50Hz, full load

Working temperature range: -40°C to 70°C
Working humidity: 10%-90%RH Non-condensing

Electronic Connection: 300mm VDE certified Cables

AC input cable: 2x1.0mm2 BLue/Brow

DC output Cable: 2x1.5mm2 Black/RED

Number of output: 1 channel

Compliance with CE EMC LVD ROHS SELV LPS
Dimension: 191x52x37mm,
Packing: 0.63Kg;20pcs/13.6Kg/0.03CBM

Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices, illuminated signs, lightbox, linear lighting)

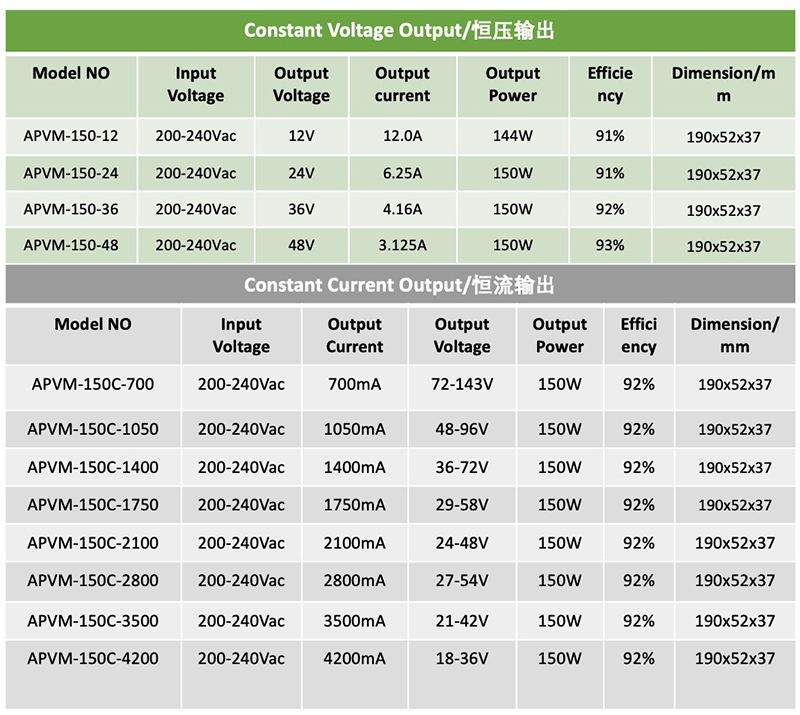

Other Output Options Available:
