36W 24V 1.5A Voltage Waterproof LED Power Supply

36W IP67 Waterproof LED Power supply, 24V 1.5A

Constant Voltage LED Drivers run off line voltage (90-264VAC) and are available in 35W, 60W, 75W,100 Watt,150W,200W models that act as a switching device to turn AC input voltage into a single-output DC voltage between 12V and 48V. This model operates at 36W and 24V. Applications include LED-based decorative, architectural lighting, stage/theater lighting, LED electronic displays. See Related Products for other models

Product Features:

1.Constant Voltage mode power supply

2.Wide input voltage

3. Epoxy encapsulated with IP67 level for harsh conditions

4. Withstand 2KV I/P-O/P

5. Short circuit, over load, over voltage and over temperature protections

6. Fully isolated plastic case

7. Cooling by free air convection -30°C to +75°C operation

8. UL1310 Class 2 power unit, passes LPS

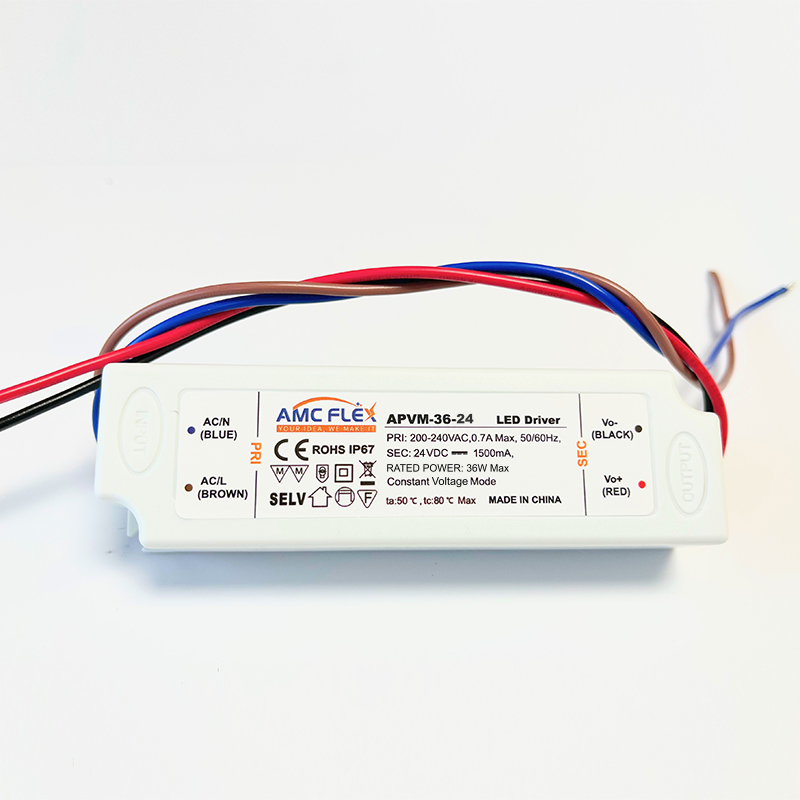

Model Number: APVM-36-24

Drive mode: Constant voltage mode

Input Voltage: 100-240VAC/200-240VAC 47-63Hz 0.6A max

Output Voltage: 24V

Output Current: 1.5A

Output Rated Power: 36W max

Inrush Current: 30 Amps max. at 230VAC/50Hz,full load

No Load Power Consumption: ＜0.5W

TC Max: 80 ℃, Ta:50 ℃

Protections: Short Circuit /Over Current /

Short Circuit Protection (SCP) Yes,hiccup mode, auto-recovery

Over Voltage Protection (OVP): Yes,hiccup mode, auto-recovery

Over Current Protection (OCP): Yes,hiccup mode, auto-recovery

Working TEMP.: -30°C to -70°C

Working Humidity: 10%-90% RH non-condensing

Storage TEMP.,Humidity and altitude: -40℃ ~+70°C ambient

temperature and a 5% to 95% relative humidity range throughout

an altitude range of -60 meters to +5000 meters AMSL.

Certificates and approvals: CE CB SELV ROHS

MTBF: 100Khours minimum at full load at 25℃ ambient

Dimension: 120 x 30x 26mm (L x W x H)

Packing: 0.25Kg; 60pcs/16Kg/0.26CBM

Other Output Options available:

TECHNICAL SPECS DOWNLOAD:

APVM-36-24 Technical Specs
