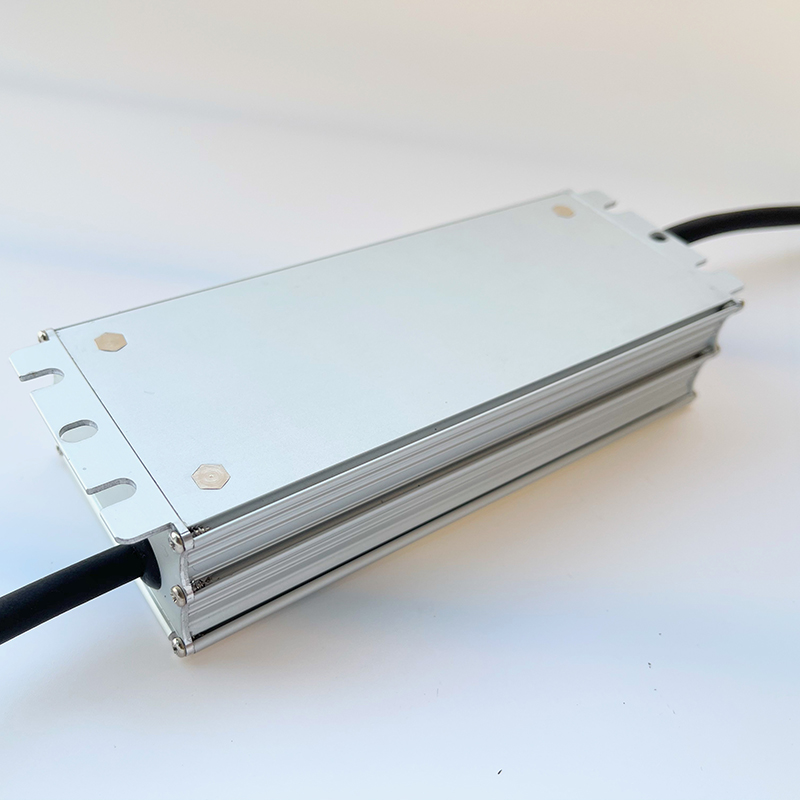

75W 2100mA 18-36VDC projector LED current driver

Product Features:

1. 176-305VAC wide input voltage range

2. Constant Current Drive Mode

3. Built in active PF function, PF>0,95

4. High working efficiency up to 90%

5. THD<15%, Flicker-Free Design

6. IP67 waterproof level with fine aluminum housing, suitable for outdoor applications

7. Class 2 Power unit

8. 4KV + 6KV Surge protection, more safety

9. 5 years warranty

Technical specs:

1	Input
NO	Item	Specs	Unit	Note
1.1	Input voltage	200～277	Vac	Typical 220Vac
1.2	Input voltage range	176～305	Vac
1.3	Input Frequency	50/60	Hz
1.4	Input Frequency Range	47～63	Hz
1.5	Max Input current	≤0.55	A	Vin=200Vac,rated load
1.6	Input inrush current	≤20	A	240Vac input，25℃ cold start
1.7	PF	≥0.95		Vin=200～240Vac,rated load
1.8	THD	<15	%	Rated input voltage, Rated load

3. Protection

Overload

Short Circuit

4. Environment

Operating Temperature range:-40 to +80℃

Storage Temperature range:-45 to +80 ℃

Humidity: 10～95%

Waterproof Level:IP67

5. Safety Standards

UL8750, IEC/EN61347-1,EN61347-2-13,EN62368, GB19510.1,

GB19510.14, IP67 Approved

Withstand voltage: I/P-O/P:3KV

EMI,EMS

EN55015(CISPR15), GB17743, EN61000-3-2 , Class C, EN61000-4-2,

8KV air ; Level 2, 4KV contact, EN61000-4-3, EN61000-4-4,

EN61000-4-5，4KV/Line-Line 6KV/Line-Earth, EN61000-4-6

6. Others

MTBF>200Khours

Standby Power Consumption<0.5W

Dimension:114(L)*66.2 (W)*38(H)mm

Packing: 0.55KG/PC, 350 x 310 x 260 mm, 24pcs /14.7Kg /0.02CBM/CTN

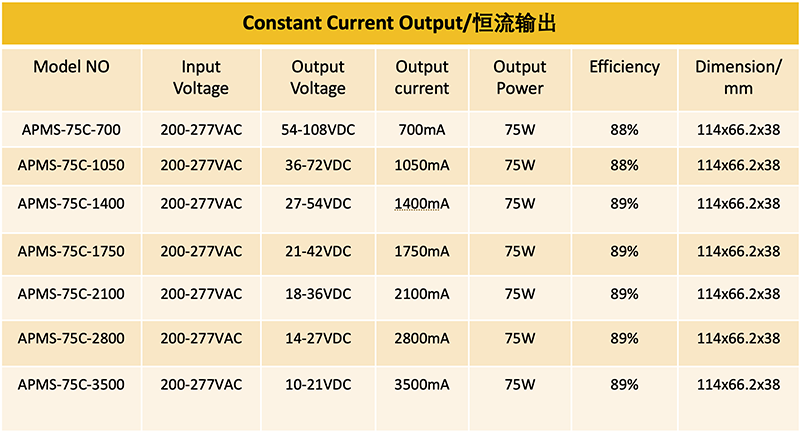

Other Output Options Available:
