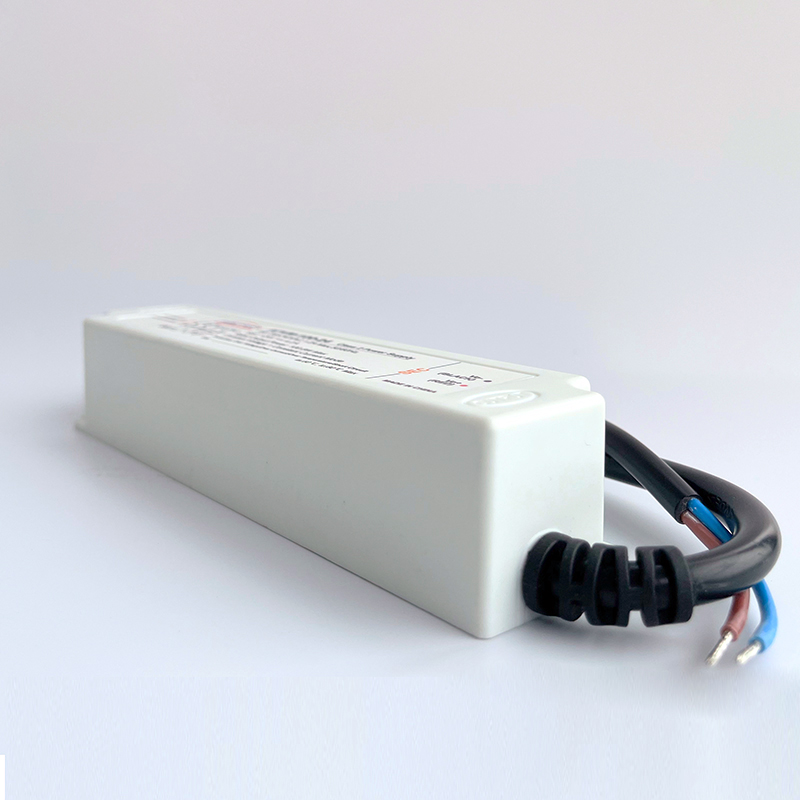

LED Driver, 100W 12V Waterproof LED Driver Transformer 180-264VAC to 12V 8.0A DC Electric D Power Supply for 12V LED Products
CONSTANT OUTPUT LED DRIVER: Wide AC Input 90-132VAC/180-264VAC to 12V constant voltage, up to 93% High efficiency
Connecting dimming controllers smoothly.
NO FLICKER; Please confirm the specific Wattage of the products before use to avoid flicker
SAFETY CERTIFICATION: Class 2,SELV, CE, ROHS, ERP, CB, KC
FULL PROTECTION: Plastic case for dry and damp locations; It has Short Circuit/Over Loading /Over temperature/Over Voltage protections that keep your products and projects safety working
HITLIGHTS QUALITY: Suitable LED lighting and moving sign applications, 3 years warranty
Constant voltage+Constant Current Hybrid LED Power supply
|
Model Number: APVM-100-12 |
|
|
Input Voltage |
200-240VAC 47-63Hz,1.2A max/90-132VAC, 2.2A Max |
|
Output Voltage |
12V |
|
Output Current |
8A |
|
Output Rated Power |
96W max |
|
Inrush Current |
60 Amps max. at 230VAC/50Hz,full load |
|
No Load Power Consumption |
＜0.5W |
| Case Temperature |
TC: 80 ℃, Ta:50 ℃ |
|
Protections |
Short Circuit /Over Current /Over Voltage /over temperature protection |
|
Short Circuit Protection (SCP) |
Yes,hiccup mode, auto-recovery |
|
Over Voltage Protection (OVP) |
Yes,hiccup mode, auto-recovery |
|
Over Current Protection (OCP) |
Yes,hiccup mode, auto-recovery |
| Over Temperature Protection(OTP) |
Yes,hiccup mode, auto-recovery |
|
Working Temperature range |
-30°C-to 70°C |
|
Working Humidity |
10%-90% RH non-condensing |
|
Storage Temperature |
Humidity and altitude: -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Standby Power Consumption | <0.5W |
|
Certificates and approvals |
CE CB SELV ROHS |
|
MTBF |
100Khours minimum at full load at 25℃ ambient |
|
Dimension |
162.5 x 42.5x 32mm (L x W x H) |
|
Packing |
0.44Kg; 32pcs/15.1Kg/0.26CBM |
Other Output voltage options available:
| Constant Voltage Output/恒压输出 |
| Model NO |
Input voltage |
Output voltage |
Output Current |
Output Power |
Efficiency | Dimension/mm |
| APVM-100-12 |
200-240VAC |
12VDC | 8A | 96W | 90% | 162.5x42.5x32 |
| APVM-100-24 |
200-240VAC |
24VDC | 4.2A | 100W | 91% |
162.5x42.5x32 |
| APVM-100-36 |
200-240VAC |
36VDC | 2.77A | 100W | 92% |
162.5x42.5x32 |
| APVM-100-48 |
200-240VAC |
48VDC | 2.1A | 100W | 93.5% |
162.5x42.5x32 |
| Constant Current Output/恒流输出 |
| Model NO | Input Voltage | Output Current | Output Voltage | Output Power | Efficiency | Dimension/mm |
| APVM-100C-700 | 200-240VAC | 700mA | 72-143VDC | 100W |
90% |
162.5x42.5x34 |
|
APVM-100C-1050 |
200-240VAC |
1050mA | 48-96VDC |
100W |
90% |
162.5x42.5x34 |
|
APVM-100C-1400 |
200-240VAC |
1400mA | 36-72VDC |
100W |
90% |
162.5x42.5x34 |
|
APVM-100C-1750 |
200-240VAC |
1750mA | 29-58VDC |
100W |
90% |
162.5x42.5x34 |
|
APVM-100C-2100 |
200-240VAC |
2100mA | 24-48VDC |
100W |
90% |
162.5x42.5x34 |
|
APVM-100C-2800 |
200-240VAC |
2800mA | 18-36VDC |
100W |
90% |
162.5x42.5x34 |
|
APVM-100C-3500 |
200-240VAC |
3500mA | 14-28VDC |
100W |
90% |
162.5x42.5x34 |
Input Cable: Blue/Brown, 2x1.0mm2 with SR
Output Cable: Black/Red, 2x1.5mm2 with SR
EMC Emission: EN55015
Conducted: EN55015
